| Items |
UTP7304GE |

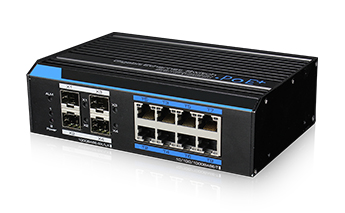

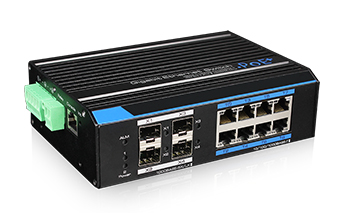

UTP7308GE |
| Hardware Specifications |
| Downlink Ports |
4*10/100/1000Base-T RJ-45(Auto-MDI/MDI-X) |
8*10/100/1000Base-T RJ-45(Auto-MDI/MDI-X) |
| Uplink Ports |
2*1000Base-X SFP |
4*1000Base-X SFP |
| Console Port |
1*RS-232 console port(115200,8,N,1) |
| Alarm Output |
1*Relay |
| LED Indicators |
2*Power indicators
1*Alarm indicator
2*SFP port indicators
4*Port Link/ACT indicators
1*Fast Ring indicator |
2*Power indicators
1*Alarm indicator
4*SFP port indicators
8*Port Link/ACT indicators |
| Init Button |
Short press to restart, Long press >5s to initialize the system |
| DIP Switch |
Default mode: Disable Fast Ring function
Ring mode: Enable Fast Ring on X1~X2 SFP ports |
N/A |
| Input Voltage |
12~57V DC |
| Power Consumption |
≤20W (Full load, not including PoE) |
≤30W (Full load, not including PoE) |
| Dimensions(W*D*H) |
163mm*110.5mm*46.5mm |
| Material |
Metal shell |
| Installation |
DIN-rail/Wall mounted/Desktop |
| Switch Property |
| Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad,
IEEE 802.1D, IEEE 802.1X |
| Forwarding Modes |
Store and Forward |
| Packet Buffer |
4Mbit |
| MAC Table |
8k |
| Switching Capacity |
12Gbps/non-blocking |
24Gbps/non-blocking |
| Packet Forwarding Rate |
8.9Mpps |
17.9Mpps |
| Jumbo Frame |
10k bytes |
| Reliability |
| Surge Immunity |
6kV, Standard: IEC6000-4-5 |
| ESD Protection |
6kV Contact Discharge, 8kV Air Discharge,
Standard:IEC61000-4-2 |
8kV Contact Discharge,15kV Air Discharge,
Standard:IEC61000-4-2 |
| Operating Temperature |
-40°C ~75°C |
| Storage Temperature |
-40°C ~85°C |
| Operating Humidity |
5%~95%(Non-condensation) |
| Software Architecture |
| System Status |
| System Status |
• Device Name
• MAC Address
• Firmware Version
• Hardware Version
• System Time
• Update Time |
| Port Configuration |
| Port Setting |
• Port State
• Port Speed
• Duplex Mode
• Traffic Control
• Port Range |
| Rate Limit |
• Enable and Disable
• Port Range
• Input Speed Limit
• Output Speed Limit |
| Storm Control |
• Port Range
• Broadcast Storm
• Multicast Storm
• Unknown Unicast Storm |
| VLAN |
| VLAN |
• Port-based VLAN
• VLAN Forward
• Voice VLAN OUI
• PVLAN
• MAC-based VLAN
• Protocol-based VLAN
• GVRP
• QinQ |
| QoS |
| 802.1p QoS |
• 802.1p Priority
• Output Queue |
| DSCP |
• DSCP Value Range
• Output Queue |
| Redundancy |
| LACP |
• Trunk Setting |
| Fast-Ring Protection |
• Fast-Ring Network Group 1
• Fast-Ring Network Group 2 |
| Rapid Spanning Tree |
• STP Version
• Device Priority
• Message Sending Period
• Message Maximum Lifetime
• Port State Transition Delay
• This Bridge Update Message
• Modify Configuration |
| Loopback Protection |
• Protect Automatic Recovery
• Disable Loop Port Time
• Port Range
• Port Loop Detection |
| ERPS Ring |
• Ring Number
• East Interface
• West Interface |
| ERPS Instance |
• EPRS Instance Name
• ERPS Instance ID
• ERPS Ring Level
• RAPS VLAN
• Owner Interface
• Subring Block
• Associated Instance |
| Port Reliability |
| Static Address Lock |
• Enable and Disable
• MAC Address, VLAN ID, Port |
| 802.1X Authentication |
• Authentication Timer
• Radius Server Setting
• Port Setting |
| Radius Database |
• Radius Server Setting |
| Network Management |
| SNMP |
• SNMP Server
• SNMP Version
• Read-only Group Name
• Read and Write Group Name
• SNMP V3 Setting |
| Port Mirroring |
• Monitor Port
• Mirror Port Range
• Collect Data |
| Email Alarm |
• Mail Server Setting
• Receiver Address
• Mail Replay Address
• Mail Interval |
| IGMP Snooping |
• IGMP Query
• IGMP Query Interval
• Group Member Alive Time |
| DHCP Server |
• Client Lease Time
• DNS Address
• Win Server
• Network Interface
• Default Gateway
• Start IP Address
• Max Client Number |
| DHCP Relay |
• Option 82
• DHCP Server Address |
| DHCP Snooping |
• Trust Port Setting |
| DHCPv6 Snooping |
• Trust Port Setting |
| Telnet Setting |
• Enable and Disable |
| Network Information |
| Packet Statistics |
• Sent Packet Statistics
• Received Packet Statistics |
| Traffic Statistics |
• Sent Frame Statistics
• Received Frame Statistics |
| MAC Address Table |
• MAC Address Table
• Sort Type |
| System Management |
| IP Address |
• Manage VLAN
• DHCP Client
• IPv4 Address
• Default Gateway
• DNS Address
• IPv6 Address |
| User Setting |
• Access Privilege
• Account Setting |
| Syslog |
• Log Query, Download, Clearing |
| File Management |
• Restore Factory Value
• System Reboot
• Download Configuration File
• Upload Configuration File
• System Upgrade |
| Web Access |
• HTTP
• HTTPS |
| Timing Start |
• Restart Every Day/Week/Month |
| Alarm Management |
• Port Network
• Port PoE |
| One Key Smart |
• CCTV Mode
• Device Lock
• Fast Ring
• Device Online (PoE watchdog) |
